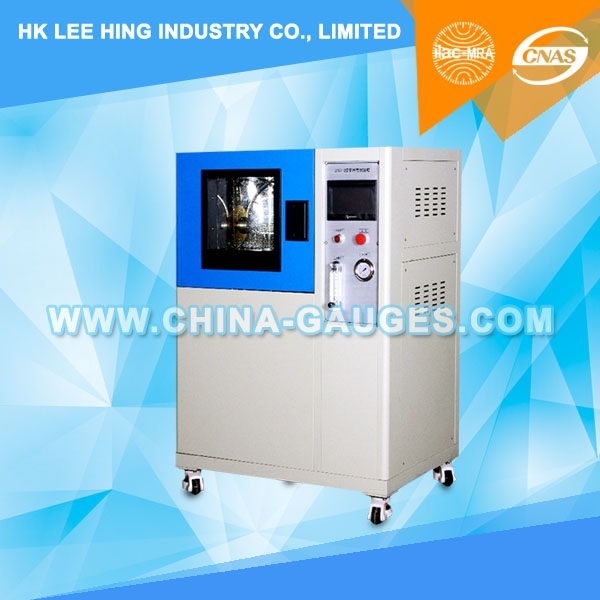

IPX3 - IPX4 Oscillating Tube Test Chamber

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-IPX34B

Product Specifications:

For measuring and testing the torque strain exerted by appliances with plug pins on socket-outlets, in accordance with IEC 60065 clause15.4.1 and figure 11, IEC 60335-1 clause 22.3, IEC 60884-1 clause 14.23.2.

The balancing arm of the test apparatus pivots about a horizontal axis through the center lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.

Test standard:

IPX3-4 Oscillating Tube Test Chamber is designed according to the relevant standard requirements of IEC60529 clause14.2.3, 14.2.4 and figure 4.

Application:

The main role of IPX3/4 Oscillating Tube Test Chamber is to test products storage, transport and use in the rain climate environment. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products.

After the test, to determine the performance of the product through the identification is able to meet the requirements, in order for use of the product design, improvement, identification and factory inspection.

Features:

1. It' s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.

2. IPX3/4 Oscillating Tube Test Chamber for the chamber type, it is suitable for the small and light specimen, if you specimen is large and heavy, you can consider our separate type.

3. The inner chamber and swivel table is made of high quality Aluminum Alloy and SUS304 stainless steel plate, to ensure the long time use does not rust.

4. Adopt large transparent window, inner chamber with LED lamp of waterproof to observe testing samples conditions.

5. Samples power-off time can be set, power 0-999M, off 0-999M.

6. Touch control functions:

A) IPX3 test, according to the standard terms of IPX3 test conditions;

B) IPX4 test, according to the standard terms of IPX4 test conditions;

C) Custom settings, The test was conducted according to user needs, you can set the test time, swing pipe angle, swing pipe speed, and the speed of the swivel table.

7. The panel is provided with a flow meter and pressure gauge, you can visually adjust the flow at the meter.

8. Test time can be set 0-999M adjustable.

9. Use Panasonic PLC, 7-inch touch screen test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel paint.

10. High precision filter can effectively filter impurities in tap water, to prevent clogging of the needle tip.

11. Bottom seat is equipped with four activities with brake casters for easy mobility.

Specifications:
No.	Item	LX-IPX34B-R200	LX-IPX34B-R400	LX-IPX34B-R600
1	Swing Pipe Radius (mm)	R200	R400	R600
2	Internal Size (mm)	L500D500H500	L900D900H900	L1300D1300H1300
3	Exterior Dimensions (mm)	L1000D680H1440	L1400D1080H1900	L1740D1480H1950
4	Flow (L/mm)	0-1L/min	0-2L/min	0-3 L/min
5	Swivel Table Diameter (mm)	Φ 200	Φ 400	Φ 600
6	Swivel TableUp-downAdjustingRange	150 ~250 mm	350 ~600 mm	550 ~1000 mm
7	Nozzle Diameter (mm)	0.4
8	Swing Pipe Inner Size (mm)	15
9	Swing Pipe Angle	120° (IPX3), 350° (IPX4) and Adjustable
10	Swing Pipe Speed	120°for 4S, 360°for 12S and Adjustable
11	Swing Pipe Material	SUS304 stainless steel
12	Swivel Table Speed	1-5 r/min Adjustable
13	Protection Function	No water, leakage, and short circuit
14	Power Supply	220V
15	Power	1 KW
16	According to	IEC60529:1989+A1:1999 (IPX3, IPX4)

Note:

LX-IPX34B-R400 Can Add Radius200 mmof Swing Pipe; LX-IPX34B-R600 Can Add Radius200 mmand400 mmof Swing Pipe;

LX-IPX34B-R400 Can Add Diameter 200 mmof Swivel Table; LX-IPX34B-R600 Can Add Diameter 200 mmand400 mmof Swivel Table.
